S-JTIPC86322SR-X22P-D 2MP PTZ

Technical Specifications
Camera
Image sensor	1/2.8”, 2.0 megapixel Progressive scan, CMOS
Lens	5.2-114.4 mm, F1.5-3.8, DC Auto-iris Horizontal field of view 53.4?-2.7? Vertical field of view 32.3?-1.5? AF automatic focusing and motorized zoom lens
DORI distance	Detect : 5.2 mm / 80.7 m 114.4 mm / 1775.2 m Observe : 5.2 mm / 32.3 m 114.4 mm / 710.1 m Recognize : 5.2 mm / 16.1 m 114.4 mm / 355 m Identify : 5.2 mm / 8.1 m 114.4 mm / 177.5 m
Day and night	IR-cut filter with auto switch (ICR)
Minimum illumination	Color: 0.003 Lux (F1.5, AGC ON) 0 Lux with IR on
Shutter time	1 to 1/100000 sec
IR Illumination	Smart IR, 850nm wavelength Maximum distance up to 150 meters
Wide dynamic range (WDR)	120 dB
Video
Maximum resolution	1920 x 1080
Multi-streaming	3 Streams
Frame rate	Main Stream 1080P (1920 x 1080), Max 60 fps Sub Stream 1080P (1920 x 1080), Max 60 fps Third Stream D1 (720?576), Max. 60 fps
Video compression	Ultra 265, H.265, H.264 (Baseline/Main/ High Profile), MJPEG
Video Bit rate	CBR/VBR, 128 Kbps~16 Mbps
Audio
Audio streaming	Two-way audio
Audio compression	G.711, 8 kHz sampling rate
Suppression	Supported

White Balance	Auto/Outdoor/Fine Tune/Sodium Lamp/ Locked/Auto2
Digital noise reduction	2D/3D DNR
Backlight Compensation (BLC)	On/Off
Highlight Compensation (HLC)	On/Off
Image defogging	Digital defog
Image rotation	-
OSD	Up to 8 OSDs
Privacy Mask	Up to 24 areas
Region of interest (ROI)	Up to 8 areas
Motion Detection	Up to 4 areas
Pan/Tilt/Zoom
Pan range	360? endless
Pan speed	0.1?- 240?/s; Preset position: 300?/s
Tilt range	-15?- 90? auto reverse
Tilt speed	0.1?- 80?/s; Preset position: 80?/s
Zoom	22x optical zoom, 16x digital zoom
Number of presets	1024 presets
Patrol	Preset patrol, Route patrol, Recorded patrol
Network
Protocols	IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS
Compatible Integration	ONVIF? Profile G, ONVIF? Profile S and ONVIF? Profile T, API
Security	IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication
Interface
Network	1 x RJ45 10/100M Base-TX Ethernet
Audio input	Impedance 35k?; amplitude 2V [p-p]
Audio output	impedance 600?; amplitude 2V [p-p]
Alarm input/output	1 input, 1 output
Video output	-
Reset Button	Supported

General
Ingress protection	IP66
Impact resistance	-
Material	Metal
Edge Storage	Micro SD card up to 256GB ANR (Automatic Network Replenishment)
Operating conditions	-40?C to 65?C (-40?F to 149?F) Humidity: ?95% RH (non-condensing)
Storage conditions	-40?C to 65?C (-40?F to 149?F) Humidity: ?95% RH (non-condensing)
Power	Power over Ethernet (PoE; PSE required) DC 12V?10%, Power consumption 4 - 27.6 W
Surge protection	6 kV
Dimension	?220 x 369 mm (?8.7” x 14.5”)
Net weight	3.4 kg (7.5 lb)

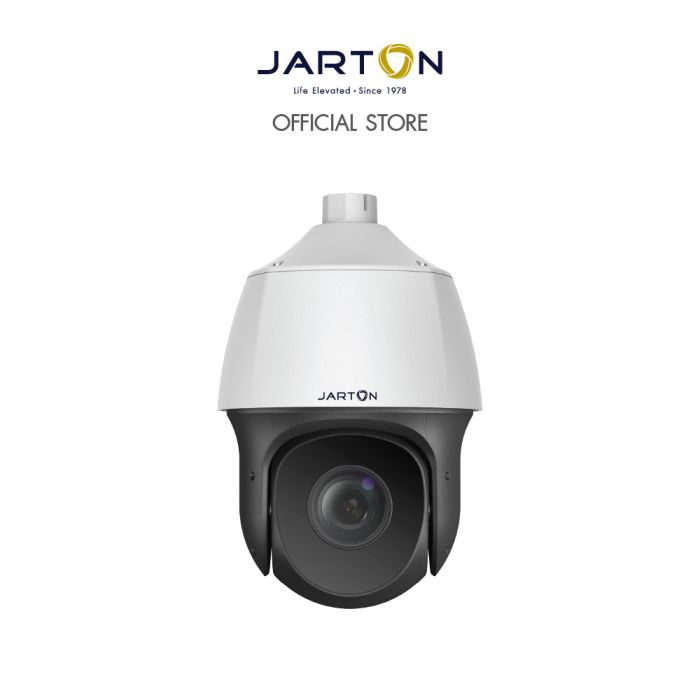

JARTON Network Camera 2MP 22x High-Speed PTZ Camera
