JTNVR8302-16E-P16-BA 16-ch-P 2-HDD

Technical Specifications
Video and Audio Input
IP camera input	16 channel
Video input bandwidth	160 Mbps
Video forwarding bandwidth	64 Mbps
Audio input	1 channel; RCA
Video and Audio Output
Video interface	1 x HDMI, 1 x VGA
HDMI output resolution	3840x2160/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
VGA output resolution	1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
Audio output	1 channel; RCA
Decoding Performance
Recording resolution	8MP (4K) / 6MP / 5MP / 4MP / 3MP / 1080P / 960P / 720P / D1 / 2CIF / CIF
Decoding capability (Live & Playback)	2 ? 4K@30fps / 4 x 4MP@30fps / 8 x 1080P@30fps / 16 x 720P@30fps
Video compression	Ultra265, H.265, H.264
Synchronous playback	16 channel
View display mode	1/3/4/5/7/9/10/12/16 window display
Network management
Network protocols	TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE
Automatic Network Replenishment (ANR)	Supported
Harddisk
HDD installation	Support 2 HDDs; SATAIII, up to 10TB capacity for each HDD
Power on Ethernet (PoE)
PoE interface	16 x RJ45 10/100 Mbps independent PoE ethernet interface (IEEE802.3af/at)
Power	Max 30W for single port Max 240W in total
External Interface
Network interface	1 x RJ45 10/100/1000 Mbps self-adaptive ethernet interface
USB interface	Front panel: 1 x USB 2.0 / Rear panel: 1 x USB 3.0
Alarm input/output	4 input, 1 output

General
Power supply	52V DC
Power consumption	?9 W (without HDD)
Working environment	-10?C to 55?C (-14?F to 131?F) Humidity ? 90% RH (non-condensing)
Dimensions (W ? D ? H)	260 ? 240 ? 47 mm (10.2" ? 9.4" ? 1.8")
Weight (without HDD)	1 kg (2.20 lb)

General
Power supply	100-240 VAC
Power consumption	?10 W (without HDD)
Working environment	-10?C to 55?C (-14?F to 131?F) Humidity ? 90% RH (non-condensing)
Dimensions (W ? D ? H)	380 ? 315 ? 53 mm (15” ? 12.4” ? 2.1”)
Weight (without HDD)	?2.6 kg (5.29 lb)

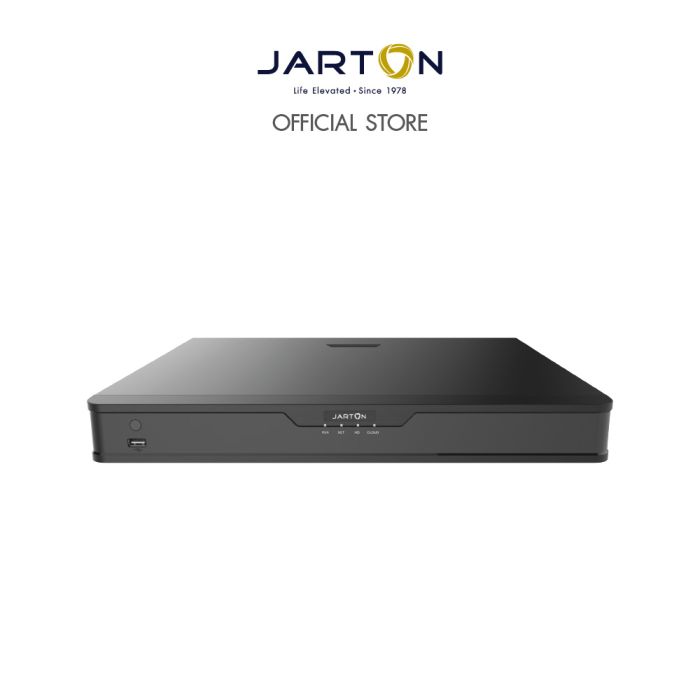

JARTON NVR 16-Channel, 16-PoE 1U 4K&H.265 Network Video Recorder 2 SATA HDDs Supported
