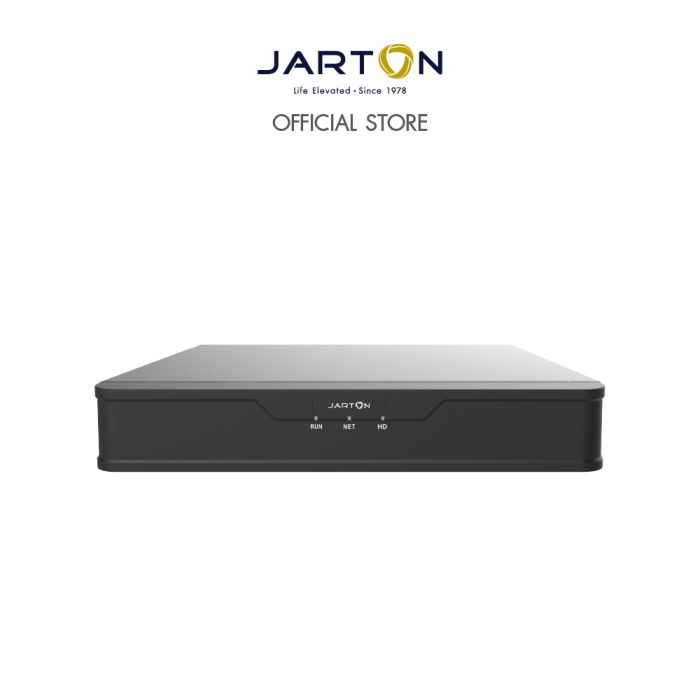

JARTON NVR 8-Channel, 8-PoE 1U 4K&H.265 Network Video Recorder 1 SATA HDD Supported
฿16,900.00
มีสินค้า
เหลือ 1 เท่านั้น
SKU
133302
| Technical Specifications | |
| Video and Audio Input | |
| IP camera input | 8 channel |
| Video input bandwidth | 80 Mbps |
| Video forwarding bandwidth | 64 Mbps |
| Audio input | 1 channel; RCA |
| Video and Audio Output | |
| Video interface | 1 x HDMI, 1 x VGA |
| HDMI output resolution | 3840x2160/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
| VGA output resolution | 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
| Audio output | 1 channel; RCA |
| Decoding Performance | |
| Recording resolution | 8MP (4K) / 5MP / 4MP / 3MP / 1080P / 960P / 720P / D1 / 2CIF / CIF |
| Decoding capability (Live & Playback) | 1 ? 4K@30fps / 1 ? 5MP@30fps / 2 x 4MP@30fps / 4 x 1080P@30fps |
| Video compression | Ultra265, H.265, H.264 |
| Synchronous playback | 8 channel |
| View display mode | 1/3/4/5/7/9 window display; Corridor format display |
| Network management | |
| Network protocols | TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE |
| Max user access | 128 users |
| Harddisk | |
| HDD installation | Support 1 HDD; SATAIII, up to 6TB capacity |
| Video Content Analytics (VCA) | |
| VCA detection | Face detection, Intrusion detection, Cross line detection, Audio detection, Defocus detection, Scene change detection, Auto tracking, Object Left behind, Object removed |
| VCA search | Face search, Behavior search |
| Statistical analysis | People counting |
| Power on Ethernet (PoE) | |
| PoE interface | 8 x RJ45 10/100 Mbps independent PoE ethernet interface (IEEE802.3af/at) |
| Power | Max 30W for single port Max 108W in total (13.5W for each) |
| External Interface | |
| Network interface | 1 x RJ45 10/100 Mbps self-adaptive ethernet interface |
| USB interface | Rear panel: 1 x USB2.0, 1 x USB3.0 |
| General | |
| Power supply | 52V DC |
| Power consumption | ?9 W (without HDD) |
| Working environment | -10?C to 55?C (-14?F to 131?F) Humidity ? 90% RH (non-condensing) |
| Dimensions (W ? D ? H) | 260 ? 240 ? 47 mm (10.2" ? 9.4" ? 1.8") |
| Weight (without HDD) | 1 kg (2.20 lb) |
