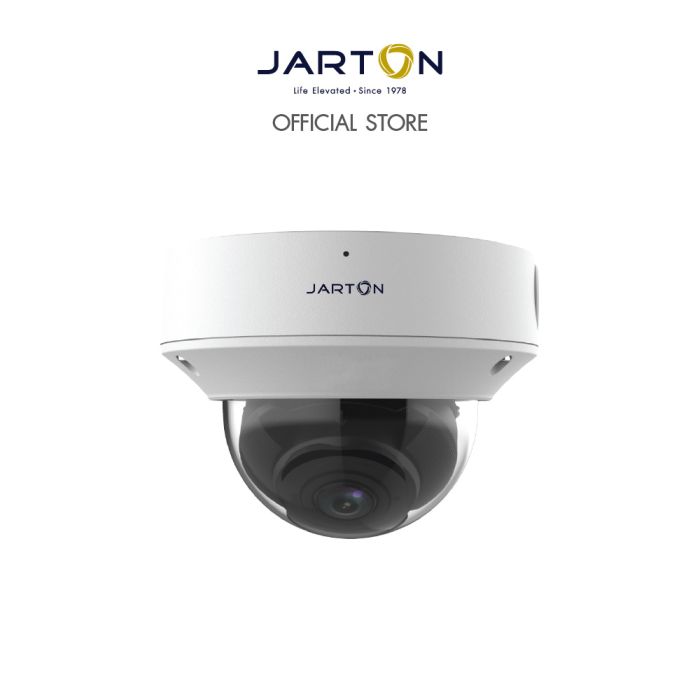

G-JTIPC83232SB-I0 2MP Dome
ราคาพิเศษ
฿7,475.00
ราคาปกติ
฿11,500.00
สินค้าหมด
SKU
133014
| Technical Specifications | |
| Camera | |
| Image sensor | 1/2.8”, 2.0 megapixel Progressive scan, CMOS |
| Lens | 2.7-13.5 mm, F1.2, Fixed iris Horizontal field of view 107.4?-29.2? Vertical field of view 54.2?-16.3? AF automatic focusing and motorized zoom lens |
| DORI distance | Detect : 2.7 mm / 41.9 m 13.5 mm / 209.5 m Observe : 2.7 mm / 16.8 m 13.5 mm / 83.8 m Recognize : 2.7 mm / 8.4 m 13.5 mm / 41.9 m Identify : 2.7 mm / 4.2 m 13.5 mm / 20.9 m |
| Day and night | IR-cut filter with auto switch (ICR) |
| Minimum illumination | Color: 0.0005 Lux (F1.2, AGC ON) 0 Lux with IR on |
| Shutter time | 1 to 1/100000 sec |
| IR Illumination | Smart IR, 850nm wavelength Maximum distance up to 40 meters |
| Wide dynamic range (WDR) | 120 dB |
| Camera angle adjustment | Pan 0? to 360? Tilt 0? to 80? Rotation 0? to 360? |
| Video | |
| Maximum resolution | 1920 x 1080 |
| Multi-streaming | 3 Streams |
| Frame rate | Main Stream 1080P (1920 x 1080), Max 30 fps Sub Stream 720P (1280 x 720), Max 30 fps Third Stream D1 (720 x 576), Max 30 fps |
| Video compression | Ultra 265, H.265, H.264 (Baseline/Main/ High Profile), MJPEG |
| Video Bit rate | CBR/VBR, 128 Kbps~16 Mbps |
| Audio | |
| Audio streaming | Two-way audio |
| Audio compression | G.711, 8 kHz sampling rate |
| Suppression | Supported |
| Image | |
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/ Locked/Auto2 |
| Digital noise reduction | 2D/3D DNR |
| Backlight Compensation (BLC) | On/Off |
| Highlight Compensation (HLC) | On/Off |
| Image defogging | Digital defog |
| Image dewarping | - |
| Image rotation | Normal/Vertical/Horizontal/180?/ 90?Clockwise/90?Anti-clockwise including Corridor Format (9:16) |
| OSD | Up to 8 OSDs |
| Privacy Mask | Up to 4 areas |
| Region of interest (ROI) | Up to 8 areas |
| Motion Detection | Up to 4 areas |
| Network | |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS |
| Compatible Integration | ONVIF? Profile G, ONVIF? Profile S and ONVIF? Profile T, API |
| Security | IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication |
| Interface | |
| Network | 1 x RJ45 10/100M Base-TX Ethernet |
| Audio input | Impedance 35k?; amplitude 2V [p-p] |
| Audio output | impedance 600?; amplitude 2V [p-p] |
| Alarm input/output | 1 input, 1 output |
| Built-in Mic | Supported |
| Reset Button | Supported |
| General | |
| Ingress protection | IP67 |
| Impact resistance | IK10 |
| Material | Metal+Plastic |
| Edge Storage | Micro SD card up to 256GB ANR (Automatic Network Replenishment) NAS (NFS protocol) |
| Operating conditions | -30?C to 60?C (-22?F to 140?F) Humidity: ?95% RH (non-condensing) |
| Storage conditions | -30?C to 60?C (-22?F to 140?F) Humidity: ?95% RH (non-condensing) |
| Power | Power over Ethernet (PoE) IEEE 802.3af DC 12V?25%, max 7.0 W |
| Surge protection | 6 kV |
| Dimension | ?148 x 111.4 mm (?5.8” x 4.4”) |
| Net weight | 0.97 kg (2.14 lb) |
