S-JTIPC82124SB-I0 4MP Bullet

Technical Specifications
Camera
Image sensor	1/3”, 4.0 megapixel Progressive scan, CMOS
Lens	2.8 mm, F1.6, Fixed iris Horizontal field of view 107.8? Vertical field of view 57?
DORI distance	Detect : 63 m Observe : 25.2 m Recognize : 12.6 m Identify : 6.3 m
Day and night	IR-cut filter with auto switch (ICR)
Minimum illumination	Color: 0.003 Lux (F1.6, AGC ON) 0 Lux with IR
Shutter time	1 to 1/100000 sec
IR illumination	Smart IR, 850nm wavelength Maximum distance up to 40 meters
Wide dynamic range (WDR)	120 dB
Video
Maximum resolution	2688 x 1520
Multi-streaming	3 Streams
Frame rate	Main Stream 4MP (2688 x 1520), Max 30 fps 4MP (2560 x 1440), Max 25 fps Sub Stream 1080P (1920 x 1v080), Max 30 fps Third Stream D1 (720 x 576), Max 30 fps
Video compression	Ultra 265, H.265, H.264 (Baseline/Main/ High Profile), MJPEG
Video bit rate	CBR/VBR, 128 Kbps~16 Mbps
White balance	Auto/Outdoor/Fine Tune/Sodium Lamp/ Locked/Auto2
Digital noise reduction	2D/3D DNR
Backlight compensation (BLC)	On/Off
Highlight compensation (HLC)	On/Off
Image defogging	Digital defog
Image dewarping	Supported
Image rotation	Normal/Vertical/Horizontal/180?/ 90?Clockwise/90?Anti-clockwise including Corridor Format (9:16)

OSD	Up to 8 OSDs
Privacy mask	Up to 8 areas
Region of interest (ROI)	Up to 8 areas
Motion detection	Up to 4 areas
Network
Protocols	IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, NAS
Compatible integration	ONVIF? Profile G, ONVIF? Profile S and ONVIF? Profile T, API
Security	IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication
Interface
Network	1 x RJ45 10/100M Base-TX Ethernet
Audio input	-
Audio output	-
Alarm input/output	-
Built-in Mic	Supported
Reset button	Supported
General
Ingress protection	IP67
Impact resistance	-
Material	Metal
Edge storage	Micro SD card up to 256GB ANR (Automatic Network Replenishment)
Operating conditions	-35?C to 60?C (-31?F to 140?F) Humidity: ?95% RH (non-condensing)
Storage conditions	-35?C to 60?C (-31?F to 140?F) Humidity: ?95% RH (non-condensing)
Power	Power over Ethernet (PoE) IEEE 802.3af DC 12V?25%, max 5.0 W
Surge protection	2 kV
Dimension (L ? W ? H)	155.9 ? 63.1 ? 62.7 mm (6.1” ? 2.5” ? 2.5”)
Net weight	0.43 kg (0.94 lb)

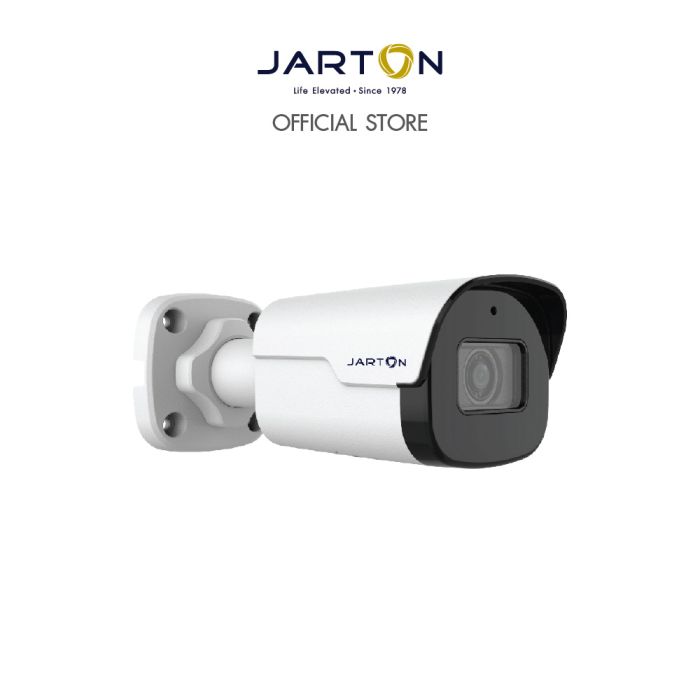

JARTON Network Camera 4MP Fixed Bullet Camera
