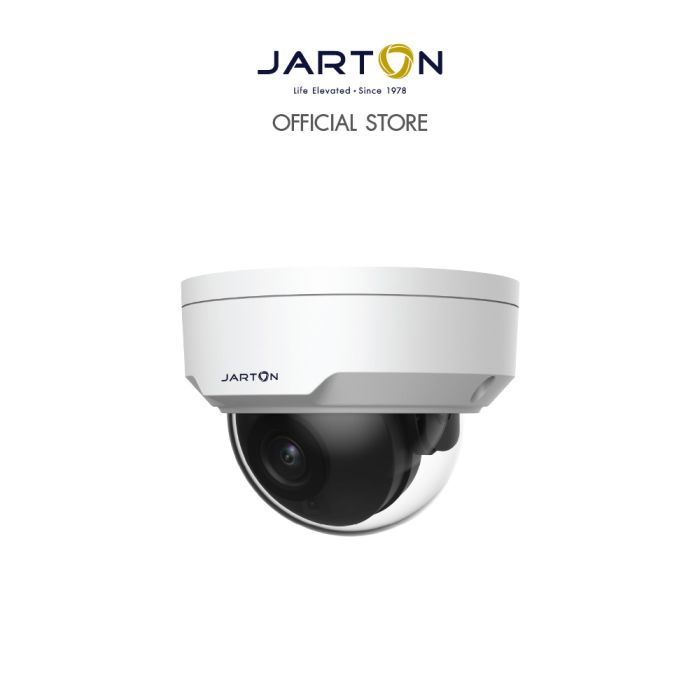

S-JTIPC8322LB-G 2MP Dome

Technical Specifications
Camera
Image sensor	1/2.7”, 2.0 megapixel Progressive scan, CMOS
Lens	2.8 mm, F2.0, Fixed iris Horizontal field of view 112.7? Vertical field of view 60.1?
DORI distance	Detect : 42 m Observe : 16.8 m Recognize : 8.4 m Identify : 4.2 m
Day and night	IR-cut filter with auto switch (ICR)
Minimum illumination	Color: 0.01 Lux (F2.0, AGC ON) 0 Lux with IR
Shutter time	1 to 1/100000 sec
IR illumination	Smart IR, 850nm wavelength Maximum distance up to 30 meters
Wide dynamic range (WDR)	120 dB
Camera angle adjustment	Pan 0? to 360? Tilt 0? to 68? Rotation 0? to 360?
Video
Maximum resolution	1920 x 1080
Multi-streaming	2 Streams
Frame rate	Main Stream 1080P (1920 x 1080), Max 30 fps Sub Stream 720P (1280 x 720), Max 30 fps
Video compression	Ultra 265, H.265, H.264 (Baseline/Main/ High Profile), MJPEG
Video bit rate	CBR/VBR, 128 Kbps~16 Mbps
White balance	Auto/Outdoor/Fine Tune/Sodium Lamp/ Locked/Auto2
Digital noise reduction	2D/3D DNR
Backlight compensation (BLC)	On/Off
Highlight compensation (HLC)	On/Off
Image defogging	Digital defog
Image dewarping	Supported
Image rotation	Normal/Vertical/Horizontal/180?

OSD	Up to 4 OSDs
Privacy mask	Up to 8 areas
Region of interest (ROI)	Up to 4 areas
Motion detection	Up to 4 areas
Network
Protocols	IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL
Compatible integration	ONVIF? Profile G, ONVIF? Profile S and ONVIF? Profile T, API
Security	IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication
Interface
Network	1 x RJ45 10/100M Base-TX Ethernet
Built-in Mic	-
Reset button	-
General
Ingress protection	IP67
Impact resistance	IK10
Material	Metal (except sun shield : plastic)
Edge storage	Micro SD card up to 128GB ANR (Automatic Network Replenishment)
Operating conditions	-35?C to 60?C (-31?F to 140?F) Humidity: ?95% RH (non-condensing)
Storage conditions	-35?C to 60?C (-31?F to 140?F) Humidity: ?95% RH (non-condensing)
Power	Power over Ethernet (PoE) IEEE 802.3af DC 12V?25%, max 3.5 W
Surge protection	2 kV
Dimension (? x H)	? 109 x 81 mm (? 4.3” x 3.2”)
Net weight	0.45 kg (0.99 lb)

JARTON Network Camera 2MP Fixed Dome Camera
